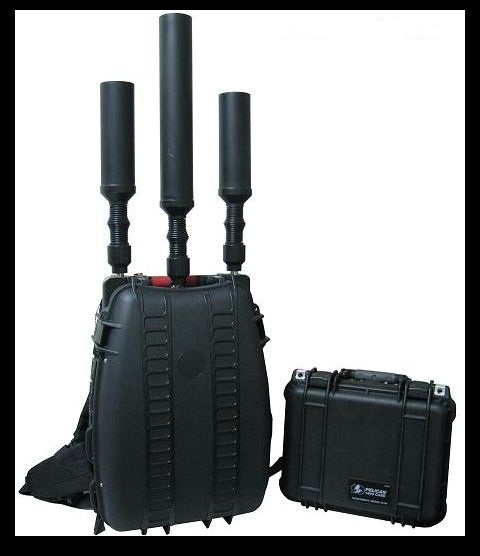

along the rising ramp portion of the waveform are many randomly distributed horizontal steps. The presence of these steps increases the interval of time that the jamming signal remains within the IF passband of the receiver. For this reason, they are called dwell-steps. The combination of the dwell-steps and the fast recurring sweep combine to enhance the barrage jamming of the victim receiver. The Guardian-200 system refers to the performance and structure of products that are in use both domestically and internationally. Based on the actual usage, applying advanced computer-aided design technology, optimized structure, increased automation level, simplification of procedures, the system will meet with the user’s frequency requirement. Because of the variety of jamming targets and a wide range of uncertainties, we have adopted the more advanced and effective jamming signal modulation method, which will increase the jamming efficiency in each band, so that to provide security protection and ensure the safety of EOD tasks.
Jamming frequency range: 20-2500MHz
Frequency Band Output Power Applications
20-80 10 Toy Remote Control
80-300 10 350MHZ TETRA、TV RFID、
Civil & Industrial simple remote control devices
300-520 10
800-1000 10 GSM、CDMA
1000-2000 10 E network、DCS-GSM、PHS
2000-2500 10 3G、Toy Remote Control、WALL
Remark: frequency band is adjustable based on requirement
1) Total power output: 60W
2) Jamming radius: 40 – 75 M ( visible environment, signal level -80 dBm)
3) Total power consumption: max 1000W
4) Power compatible: 220VAC/24VDC
5) Current input: 40Amps 24VDC
6) Operation time: continuous work 24 hours x 7 days at AC220V/DC24V
7) Built-in standard battery 26V20Ah, operating time: 45-60 minutes
8) Operating temperature: -30°C ~ +60°C
9) Weight: 20kg
Standard System Accessories:
a) AC220V-DC30V1000W Battery charger
